vault_initLABSCO SUMMARY
Reflection is the layer most note tools stop short of.
Capture and promote are familiar; drift and blind-spot detection are not. Looking at which tags gained and lost weight across a year is a different question from searching your notes, and it needs the graph that vault_analyze builds first. Migration is the other thing done carefully here — an existing vault is classified and converted with the originals archived rather than overwritten.
What it is
A knowledge-vault server organised in three layers — capture, connect, reflect. It writes into a local directory in an Obsidian-compatible format, and can migrate an existing vault into that shape.
What you get
- vault_capture saves a refined thought with automatic tagging, and deletes captures you no longer want
- vault_read searches the vault, reads a file, and lists captures by status
- vault_promote turns a capture into a structured note with wikilinks inserted automatically
- vault_analyze rebuilds the knowledge graph and runs Louvain clustering, N-degree connection queries and orphan detection
- vault_topic gathers material, then creates or updates a map-of-content style topic note
- vault_reflect produces three views: a snapshot of the current knowledge landscape, interest drift over time, and blind-spot and bridge detection
- vault_init seeds an empty vault from a template, or migrates an existing Obsidian vault — classifying notes, converting todos and archiving the originals under _archive/
- Tags are drawn from a tags.yaml at the vault root first, then from existing notes' frontmatter, then from a built-in list of default domains
Requirements
uv, with the server run as uvx obsidian-in-a-vat-mcp — package version 0.3.12 — or from the container image ghcr.io/oliverxuzy-ai/obsidian-in-a-vat. VAULT_LOCAL_PATH points at your vault directory; an empty directory is fine, since the first initialisation creates the structure. No account.
Setup effort
One command — uvx obsidian-in-a-vat-mcp
USE CASES
Saving a thought from a conversation
The capture is tagged automatically and lands in the vault with a slug.
Turning rough captures into real notes
Promotion writes a structured note with wikilinks into the existing graph.
Finding the notes nothing links to
Graph analysis reports orphans and clusters instead of leaving you to eyeball the graph view.

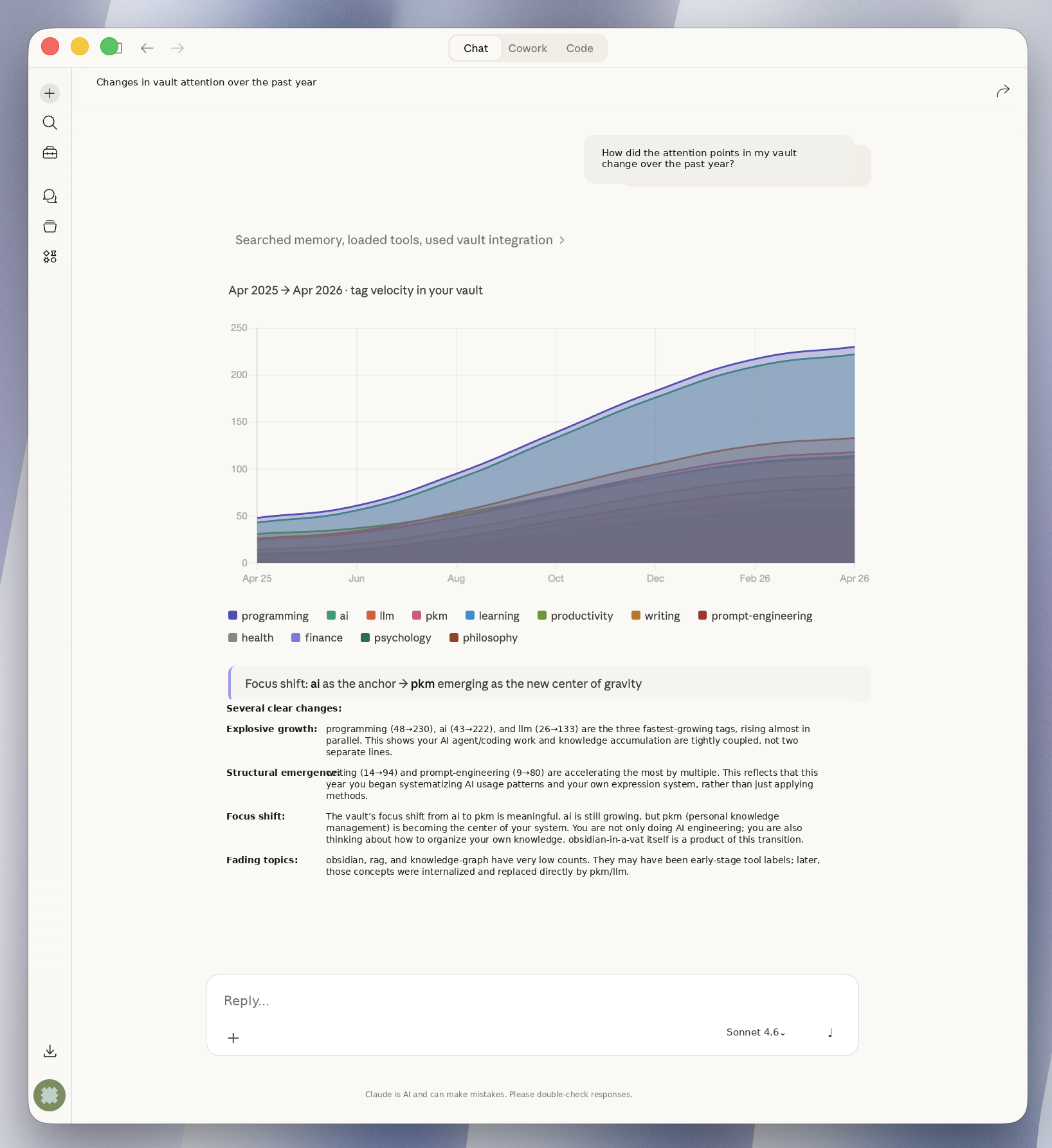

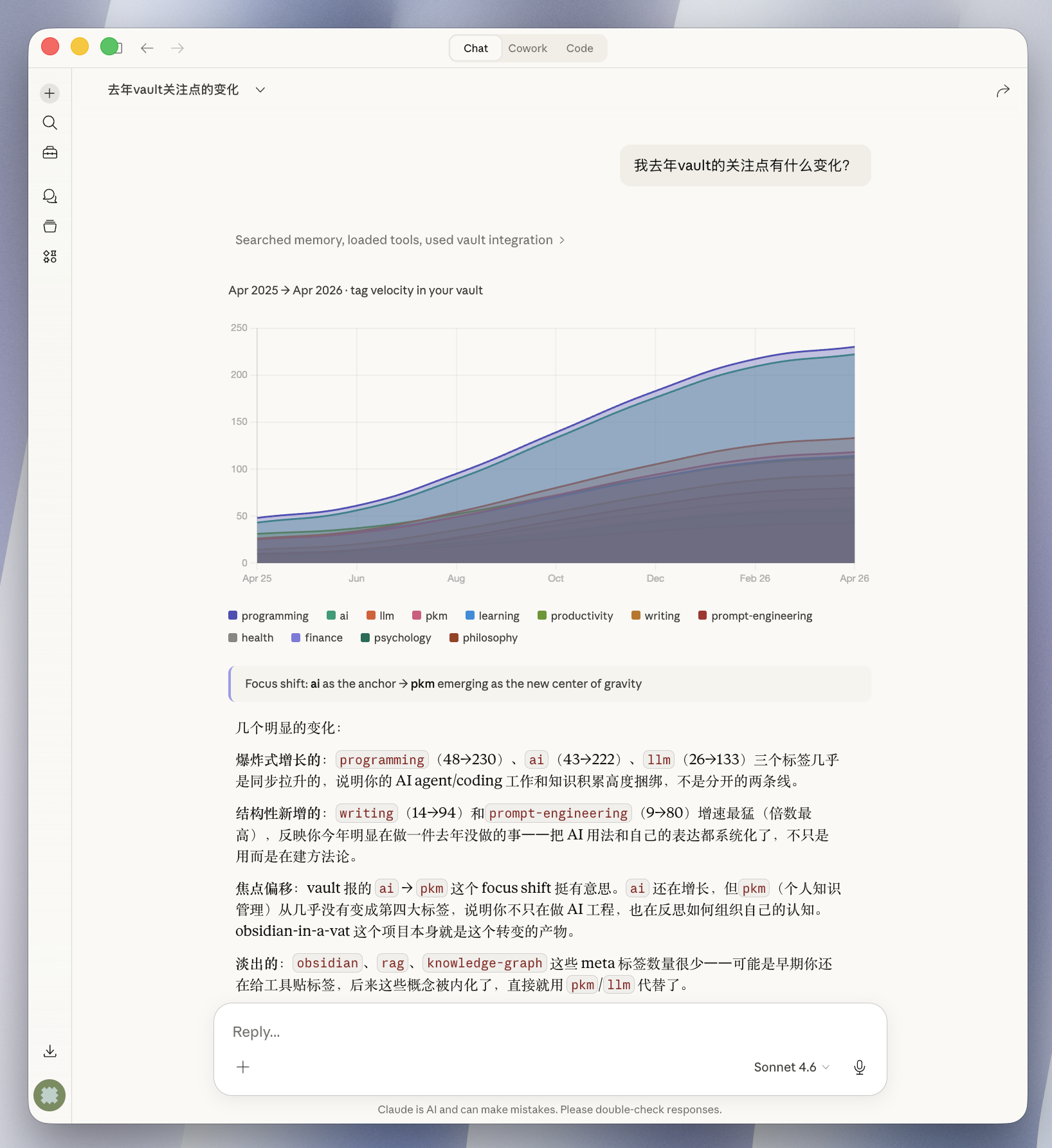

Seeing how your thinking changed

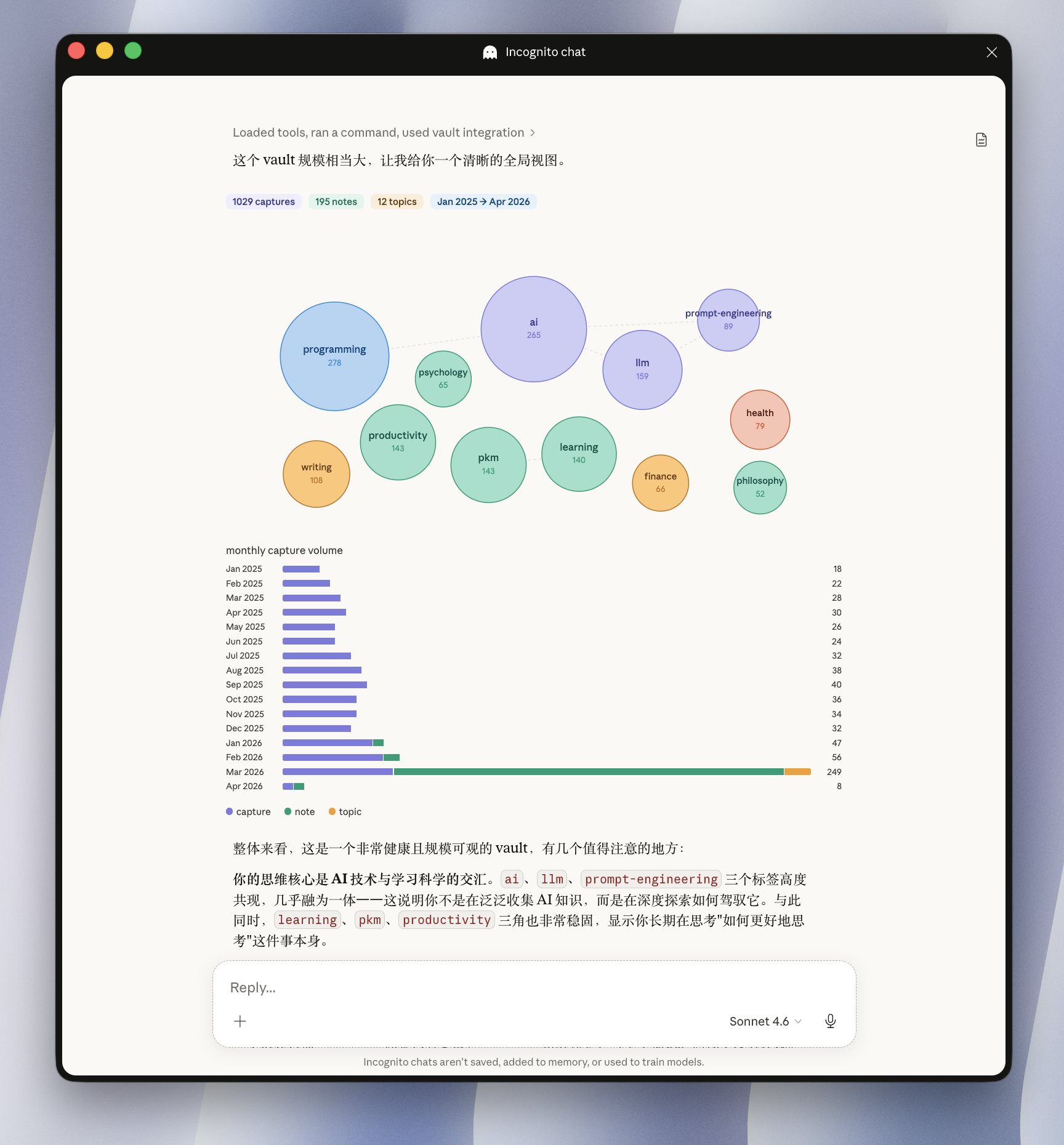

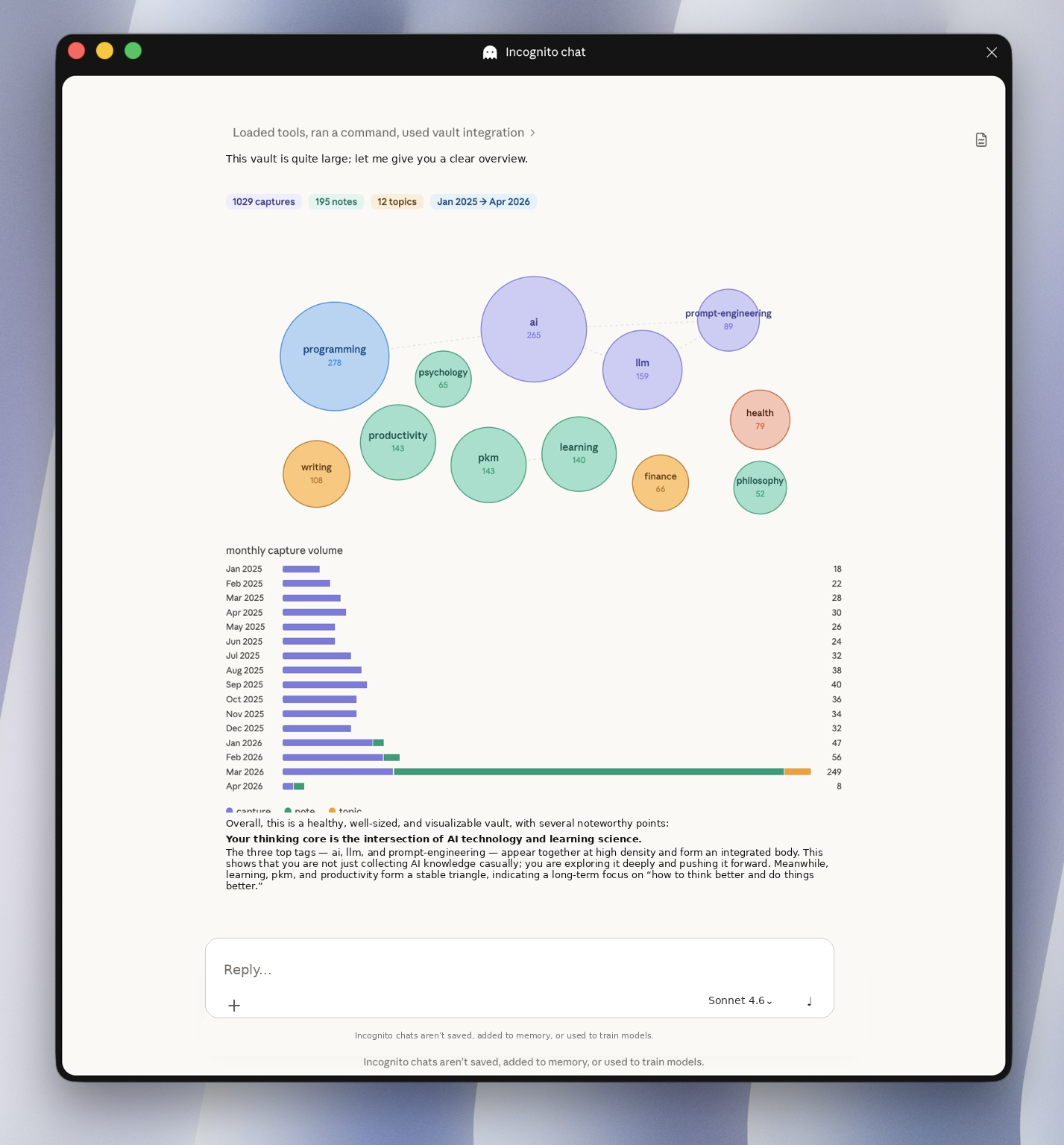

A snapshot of now, drift over time, and the blind spots between clusters.
Bringing an existing Obsidian vault in
Notes are classified and migrated, with the originals archived rather than replaced.
7 tools
Listed in project docs. Your client may show a different list.
vault_readvault_capturevault_promotevault_analyzevault_topicvault_reflectBEFORE YOU INSTALL
What to know first
Tools you get
7 tools named in the project's documentation.
Requires
uvx on PATH
Where it runs
All 3 documented setups run the server on your machine.
INSTALLATION
Connect your client
Server setup
uvx obsidian-in-a-vat-mcpMCP Clients
Claude Desktop — uvx
{
"mcpServers": {
"vault": {
"command": "uvx",
"args": [
"obsidian-in-a-vat-mcp"
],
"env": {
"VAULT_LOCAL_PATH": "/Users/<YOUR_USERNAME>/my-vault"
}
}
}
}Claude Desktop — Docker
{
"mcpServers": {
"vault": {
"command": "docker",
"args": [
"run",
"-i",
"--rm",
"-v",
"/Users/<YOUR_USERNAME>/my-vault:/vault",
"ghcr.io/oliverxuzy-ai/obsidian-in-a-vat:latest"
]
}
}
}Claude Desktop — local build
{
"mcpServers": {
"vault": {
"command": "uv",
"args": [
"run",
"--directory",
"<YOUR_PATH_TO_OBSIDIAN_IN_A_VAT>",
"vault-mcp"
],
"env": {
"VAULT_LOCAL_PATH": "/Users/<YOUR_USERNAME>/my-vault"
}
}
}
}
