MindMup2 Google Drive MCP Server

A Model Context Protocol (MCP) server that lets AI clients (Claude Code, Cursor) search, read, and drill into MindMup 2 .mup mind maps stored in Google Drive — without dumping a 3MB JSON tree into the model. Large maps are auto-summarised into a tree outline; the AI then drills into specific sections by node_path.

Compatibility: Claude Code, Cursor (HTTP transport). Not supported: Claude Desktop (stdio-only).

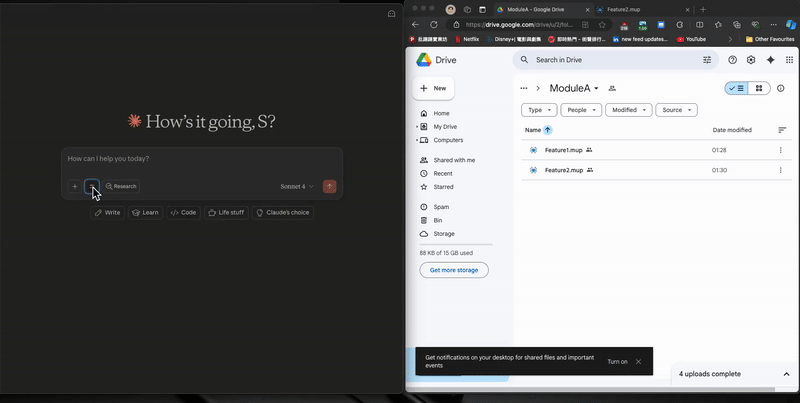

💫 Result


✨ Features

  • Search MindMup files across your entire Google Drive (read-only)
  • Tree navigation + section drill-down for large mind maps — small files return full content, large files return an outline you can drill into
  • Per-client cache isolation via X-Client-Id header, so different users/tools don't share cached content
  • Hot-reload dev mode via fastmcp run --reload + bind-mounted source
  • FastMCP server with built-in /health and /ping endpoints
  • Docker Compose for both dev and prod

🗺️ End-to-End Flow

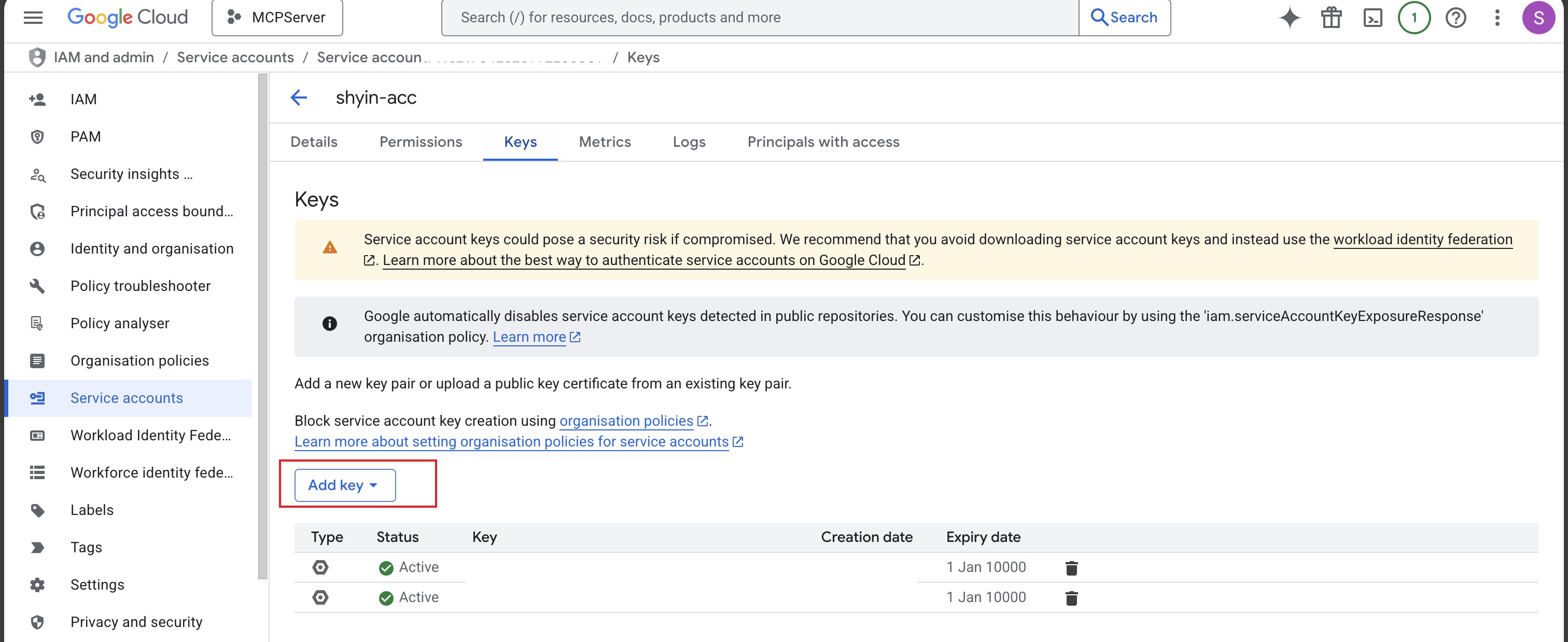

1. Set up Google Cloud service account     →  download JSON key

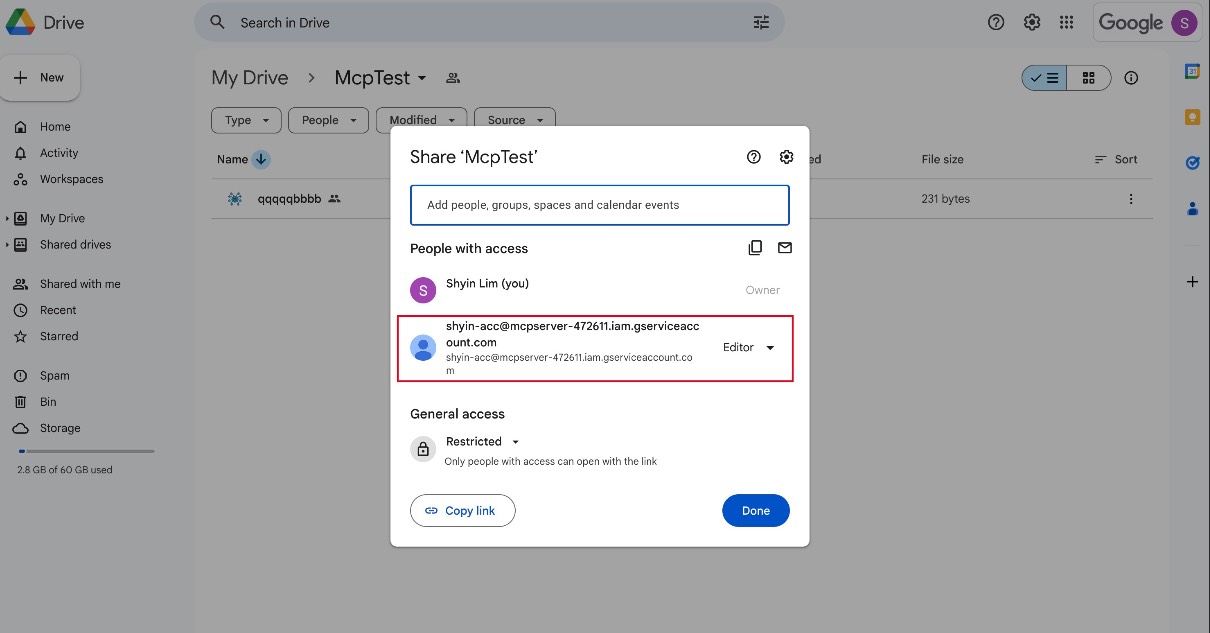

2. Share your Drive folder with the SA     →  Viewer access
3. Base64-encode the JSON key              →  for X-Google-Credential header
4. Run the server  (Docker or Python)      →  http://127.0.0.1:9805
5. Configure your MCP client (Claude/Cursor) with the base64 credential
6. Verify  →  curl http://127.0.0.1:9805/health

🔧 Available MCP Tools

ToolDescription
list_filesList MindMup files from Google Drive (folders and non-.mup filtered by default). Returns id, name, folder_url, size, modified_time.
read_mindmapRead a MindMup file by file_id or file_name (one required; name uses first partial match). Small files (<100KB AI-dict) return content_type: "full". Large files return content_type: "outline_only" with tree_outline, section_stats, and suggested_start_paths.
search_mindmapSearch nodes by keyword. Params: file_id, keyword, optional node_path (subtree scope), max_results=30, normalize_whitespace=True. Returns nodes with node_path, title_preview, breadcrumb, children_count.
get_mindmap_sectionDrill into a section by node_path (dotted integers, root is 1, e.g. "1.2.3"). Optional max_depth, offset=0, limit=0. Returns content_type: "full" | "outline_only" | "paginated" | "truncated" — auto-switches when the section is still too large.

Suggested workflow for AI agents: list_files → read_mindmap → if outline_only, either search_mindmap (by keyword) or get_mindmap_section (by node_path from suggested_start_paths).

🏗️ Project Structure

<details> <summary>Click to expand</summary>
├── mcp_deployment/
│   ├── docker-compose-dev.yml
│   ├── docker-compose-prod.yml
│   └── Dockerfile
├── src/
│   ├── core/
│   │   ├── gdrive_client.py    # Google Drive API client
│   │   ├── gdrive_feature.py   # Google Drive feature implementation
│   │   ├── mcp_server.py       # Main MCP server with read tools
│   │   └── mindmup_parser.py   # MindMup parsing + tree navigation
│   ├── model/
│   │   ├── common_model.py     # Common data models
│   │   ├── gdrive_model.py     # Google Drive data models
│   │   └── mindmup_model.py    # Mind map data models (with to_ai_dict)
│   └── utility/
│       ├── enum.py             # Enumerations and constants
│       └── logger.py           # Logging utilities
├── tests/                      # Unit tests
├── plans/                      # Implementation plans
├── run.py                      # Main entry point
├── requirements.txt            # Python dependencies
└── makefile                    # Build and deployment commands
</details>
