CaptureMind

★ 1

from acearv09876

Turn Claude Desktop conversations into visual mind maps via MCP. Highlights blockers to surface where you're stuck. No extra API key needed.

🔥🔥✓ VerifiedFreeNeeds API keys

#git

CaptureMind

将 Claude Desktop 对话直接整理成可视化思维导图
Turn your Claude Desktop conversations into visual mind maps — via MCP, no extra API key needed.

截图 · Screenshots

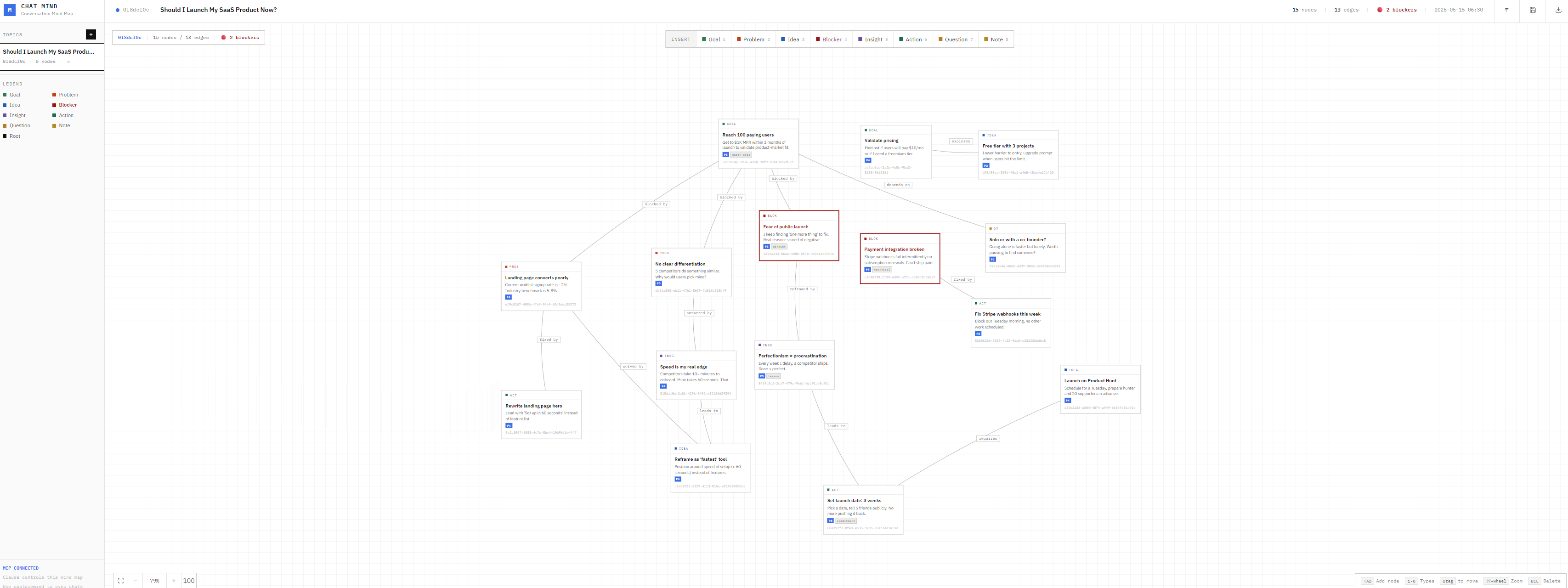

CaptureMind 思维导图总览

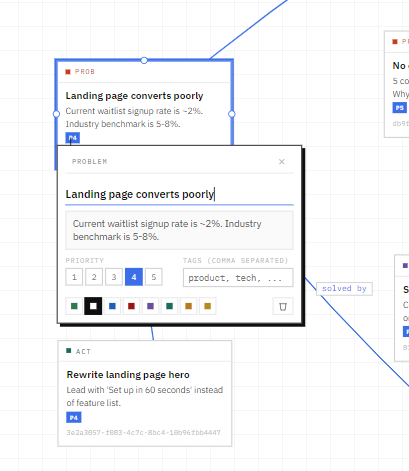

节点编辑与卡点高亮

为什么需要它 · Why

用 Claude 聊产品思路、创业方向、个人决策时，对话结束后思路往往还是散的。CaptureMind 让 Claude 在对话结束后直接把想法、目标、卡点、行动项结构化到一张导图里——尤其是卡点（Blocker），会被高亮显示，帮你看清自己真正卡在哪。

When you finish a deep conversation with Claude about product ideas, business strategy, or personal decisions, your thoughts are often still scattered. CaptureMind lets Claude structure them into a visual mind map — highlighting Blockers so you can finally see where you're stuck.

功能 · Features

capturemind MCP 工具 — Claude 自行分析对话，提取节点写入导图，无需额外 API Key
capturemind MCP tool — Claude analyzes the conversation itself and writes structured nodes to the map, no extra API key required
卡点高亮 — Blocker 节点深红色高亮，一眼看出瓶颈
Blocker highlight — Blocker nodes are rendered in deep red, making bottlenecks instantly visible
自动布局 — 节点按层级树状排列，不拥挤
Auto layout — Nodes are arranged in a hierarchical tree, clean and readable
双语界面 — 中文 / English 一键切换，偏好自动记忆
Bilingual UI — Switch between Chinese and English with one click, preference is remembered
画布交互 — 拖拽、缩放、连线、快捷键全支持
Canvas interactions — Drag, zoom, connect nodes, full keyboard shortcut support
MCP 完整控制 — Claude 可直接增删节点、搜索、导出
Full MCP control — Claude can add/edit/delete nodes, search, and export without opening the browser

节点类型 · Node Types

Type	中文	English	说明 / Description
`root`	主题	Topic	导图根节点 / Root node
`goal`	目标	Goal	想要达成的结果 / Desired outcome
`problem`	问题	Problem	需要解决的挑战 / Challenge to solve
`idea`	想法	Idea	可能的方案或创意 / Possible solution
`blocker`	卡点	Blocker	进展瓶颈，高亮显示 / Bottleneck, highlighted
`insight`	洞察	Insight	重要的认识或发现 / Key realization
`action`	行动	Action	可立即执行的下一步 / Next step to take
`question`	待解答	Question	还没有明确答案的问题 / Unanswered question
`note`	备注	Note	其他补充信息 / Supplementary info

MCP 工具列表 · MCP Tools

工具 / Tool	说明 / Description
`capturemind`	核心工具 / Core tool: 分析对话提取节点 / Analyze conversation and extract nodes
`layout_topic`	自动重新排列节点（层级树状）/ Auto-arrange nodes (hierarchical tree)
`create_topic`	新建主题 / Create a new topic
`list_topics`	列出所有主题 / List all topics
`get_topic`	获取主题详情 / Get topic details
`delete_topic`	删除主题 / Delete a topic
`add_node`	添加节点 / Add a node
`update_node`	修改节点 / Update a node
`delete_node`	删除节点 / Delete a node
`add_edge`	连接两个节点 / Connect two nodes
`delete_edge`	删除连接 / Remove a connection
`batch_add`	批量导入节点和连接 / Batch import nodes and edges
`search`	全文搜索节点 / Full-text search nodes
`export_topic`	导出为 Mermaid / JSON / Markdown

技术栈 · Tech Stack


Backend	Node.js + Express, JSON file storage
Frontend	React 18 (Babel standalone, no build step) + plain CSS
MCP	`@modelcontextprotocol/sdk`

License

MIT

Copy & paste — that's it

# 克隆项目 / Clone
git clone https://github.com/acearv09876/capturemind.git
cd capturemind

# 安装依赖 / Install
npm install

# 启动 / Start (default port 3001)
npm start

安装 · Setup

前置要求 / Prerequisites: Node.js 18+、Claude Desktop

# 克隆项目 / Clone
git clone https://github.com/acearv09876/capturemind.git
cd capturemind

# 安装依赖 / Install
npm install

# 启动 / Start (default port 3001)
npm start

浏览器打开 / Open in browser: http://localhost:3001

Claude Desktop MCP 配置 · MCP Configuration

找到 Claude Desktop 配置文件 / Locate the Claude Desktop config file:

macOS: ~/Library/Application Support/Claude/claude_desktop_config.json
Windows: %APPDATA%\Claude\claude_desktop_config.json

添加以下内容 / Add the following:

{
  "mcpServers": {
    "capturemind": {
      "command": "node",
      "args": ["/path/to/capturemind/mcp-server.js"]
    }
  }
}

将 /path/to/capturemind/ 替换为实际路径，重启 Claude Desktop。
Replace /path/to/capturemind/ with the actual path, then restart Claude Desktop.

使用方式 · Usage

① 新建主题 / Create a topic

帮我用 create_topic 新建一个主题，名字叫"产品定位探讨"
Create a new topic called "Product Positioning" using create_topic

② 对话结束后，让 Claude 整理 / After the conversation, ask Claude to capture it

帮我用 capturemind 把这段对话整理成思维导图，topic_id: <主题ID>
Use capturemind to turn this conversation into a mind map, topic_id: <topic_id>

Claude 会自己分析对话，提取节点并写入导图。打开 http://localhost:3001 查看结果。
Claude will analyze the conversation, extract nodes, and write them to the map. Open http://localhost:3001 to see the result.

③ 整理布局 / Clean up layout

帮我用 layout_topic 重新整理一下布局，topic_id: <主题ID>
Use layout_topic to reorganize the layout, topic_id: <topic_id>
